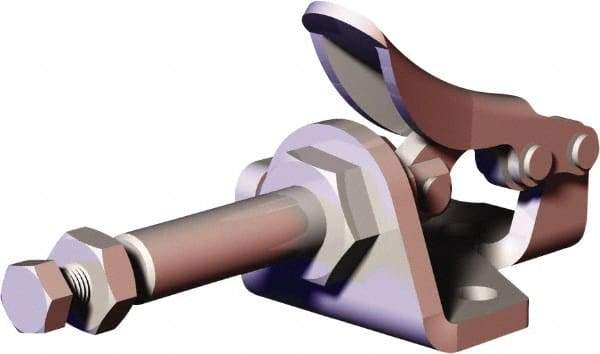

De-Sta-Co - 150.62 Lb Load Capacity, Flanged Base, Stainless Steel, Standard Straight Line Action Clamp - 5 Mounting Holes, 0.19" Mounting Hole Diam, 0.28" Plunger Diam, Thumb Handle
Item #: 44004240
Brand: De-Sta-Co
Model #: 6001-SS
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 670.00 |
| Load Capacity (Lb.) | 150.62 |
| Plunger Travel (mm) | 16.00 |
| Plunger Travel (Decimal Inch) | 0.6300 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 8-32 |
| Plunger Centerline Height (mm) | 12.70 |
| Plunger Centerline Height (Decimal Inch) | 0.5000 |
| Plunger Diameter (Decimal Inch) | 0.2800 |
| Plunger Diameter (mm) | 7.11 |
| Base Style | Flanged |
| Handle Style | Thumb |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 2.6300 |
| Overall Height (Decimal Inch) | 1.2700 |
| Base Length (Decimal Inch) | 1.5400 |
| Base Width (Decimal Inch) | 1.2300 |
| Number of Mounting Holes | 5 |
| Length Distance Between Mount Holes (mm) | 16.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Width Distance Between Mount Holes (mm) | 16.00 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Mounting Hole Diameter (mm) | 4.83 |
| Mounting Hole Diameter (Decimal Inch) | 0.1900 |
| Base Width (mm) | 31.24 |
| Base Length (mm) | 39.12 |
| Overall Length (mm) | 66.80 |
| Overall Height (mm) | 32.26 |
| Jam Nut Height (mm) | 4.06 |
| Jam Nut Height (Decimal Inch) | 0.1600 |
| Maximum Mechanical Advantage | 14:1 (Pushing); 25:1 (Pulling) |
| Includes | Jam Nut; Spindle |
