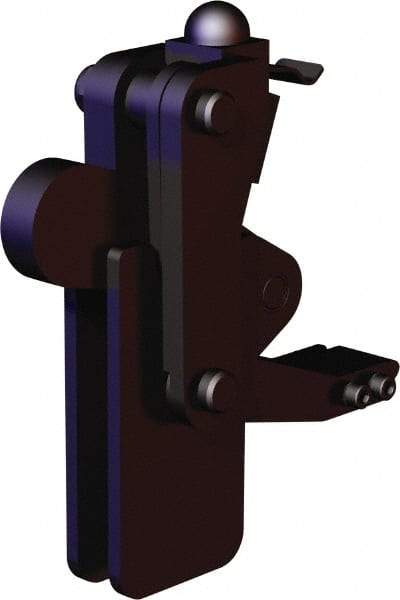

De-Sta-Co - 5,058 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 200° Bar Opening, Weldable Base, Oxide Finish, Forged Alloy Steel
Item #: 44004067
Brand: De-Sta-Co
Model #: 506-MLBLSC
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
Forged alloy steel is a matrix composed of two or more alloy elements. It is heat and corrosion resistant.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Base Style | Weldable |
| Holding Capacity (N) | 22500.00 |
| Holding Capacity (Lb.) | 5058.20 |
| Overall Height (mm) | 210.82 |
| Overall Height (Decimal Inch) | 8.3000 |
| Base Length (mm) | 65.53 |
| Base Length (Decimal Inch) | 2.5800 |
| Base Width (mm) | 27.94 |
| Base Width (Decimal Inch) | 1.1000 |
| Material | Forged Alloy Steel |
| Finish/Coating | Oxide |
| Bar Opening (Degrees) | 200.00 |
