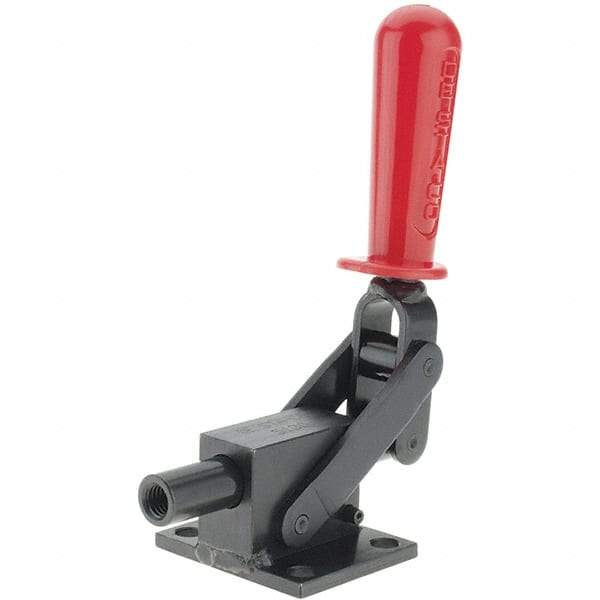

De-Sta-Co - 5,800.07 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 4 Mounting Holes, 0.41" Mounting Hole Diam, 1.14" Plunger Diam, Straight Handle
Item #: 43991025
Brand: De-Sta-Co
Model #: 5130
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 25800.00 |
| Load Capacity (Lb.) | 5800.07 |
| Plunger Travel (mm) | 44.45 |
| Plunger Travel (Decimal Inch) | 1.7500 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 1/2-13 |
| Plunger Centerline Height (mm) | 35.05 |
| Plunger Centerline Height (Decimal Inch) | 1.3800 |
| Plunger Diameter (Decimal Inch) | 1.1400 |
| Plunger Diameter (mm) | 28.96 |
| Base Style | Flanged |
| Handle Style | Straight |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 11.1100 |
| Overall Height (Decimal Inch) | 3.6300 |
| Base Length (Decimal Inch) | 1.7500 |
| Base Width (Decimal Inch) | 2.9900 |
| Handle Color | Red |
| Number of Mounting Holes | 4 |
| Length Distance Between Mount Holes (mm) | 44.45 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.7500 |
| Width Distance Between Mount Holes (mm) | 58.67 |
| Width Distance Between Mount Holes (Decimal Inch) | 2.3100 |
| Mounting Hole Diameter (mm) | 10.41 |
| Mounting Hole Diameter (Decimal Inch) | 0.4100 |
| Base Width (mm) | 75.95 |
| Base Length (mm) | 44.45 |
| Overall Length (mm) | 282.20 |
| Overall Height (mm) | 92.20 |
