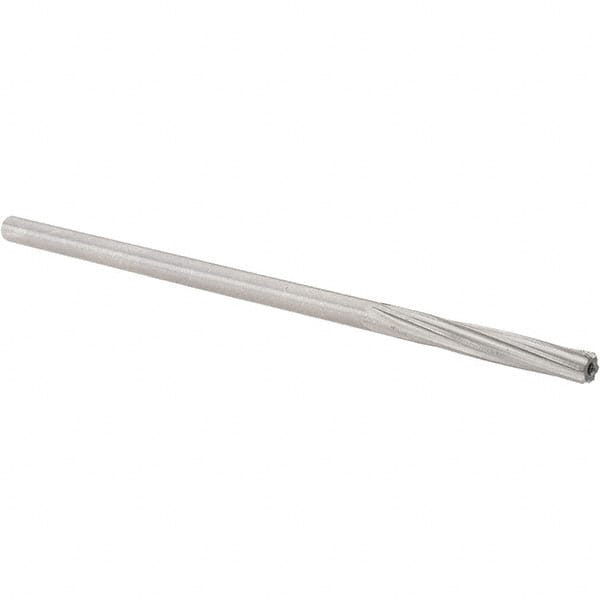

Alvord Polk - 5mm High Speed Steel 6 Flute Chucking Reamer - Spiral Flute, 0.1895" Straight Shank, 1-1/4" Flute Length, 5" OAL
Item #: 43978568
Brand: Alvord Polk
Model #: 01090
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 5.00 |
| Reamer Diameter (Decimal Inch) | 0.1968 |
| Reamer Material | High Speed Steel |
| Shank Type | Straight |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Flute Length (Inch) | 1-1/4 |
| Flute Length (Decimal Inch) | 1.2500 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 6 |
| Minimum Shank Diameter (Decimal Inch) | 0.1885 |
| Maximum Shank Diameter (Decimal Inch) | 0.1895 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (Decimal Inch) | +0.0002 to -0.0000 |
