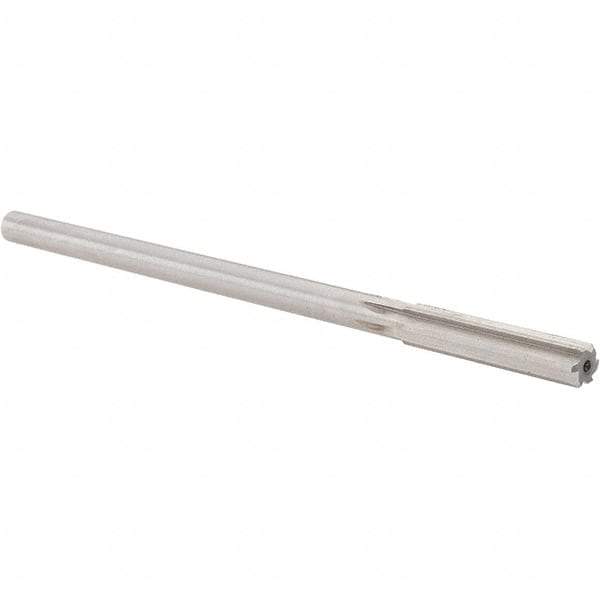

Alvord Polk - 0.3115" Cobalt 6 Flute Chucking Reamer - Straight Flute, 0.2792" Straight Shank, 1-1/2" Flute Length, 6" OAL
Item #: 43974393
Brand: Alvord Polk
Model #: 00341
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.3115 |
| Reamer Material | Cobalt |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Flute Length (Inch) | 1-1/2 |
| Flute Length (Decimal Inch) | 1.5000 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 6 |
| Over/Under Size Direction | Under |
| Minimum Shank Diameter (Decimal Inch) | 0.2782 |
| Maximum Shank Diameter (Decimal Inch) | 0.2792 |
| Under Size Over Size Dowel Pin Size | 0.3115 U/S |
| Over/Under Size Reamer | Yes |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (Decimal Inch) | +0.0002 to -0.0000 |
