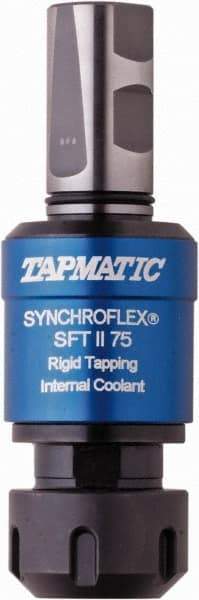

Tapmatic - 1" Straight Shank Diam Rigid Tapping Adapter - 1/4 to 3/4" Tap Capacity, 3.4645" Projection, Through Coolant
Item #: 43962240
Brand: Tapmatic
Model #: 4175125
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (Decimal Inch) | 0.2500 |
| Minimum Tap Capacity (mm) | M8 |
| Minimum Tap Capacity (Inch) | 1/4 |
| Maximum Tap Capacity (Inch) | 3/4 |
| Maximum Tap Capacity (mm) | M20 |
| Projection (Decimal Inch) | 3.4645 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 3.58 |
| Minimum Collet Capacity (Decimal Inch) | 0.1409 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Maximum Collet Capacity (mm) | 16.00 |
| Collet System | ER Tap |
| Collet Series | ER25 |
| Nose Diameter (mm) | 42.00 |
| Nose Diameter (Decimal Inch) | 1.6535 |
| Tension (mm) | 0.51 |
| Compression (Decimal Inch) | 0.0200 |
| Compression (mm) | 0.51 |
| Overall Length (mm) | 88.00 |
| Overall Length (Decimal Inch) | 3.4645 |
| Through Coolant | Yes |
