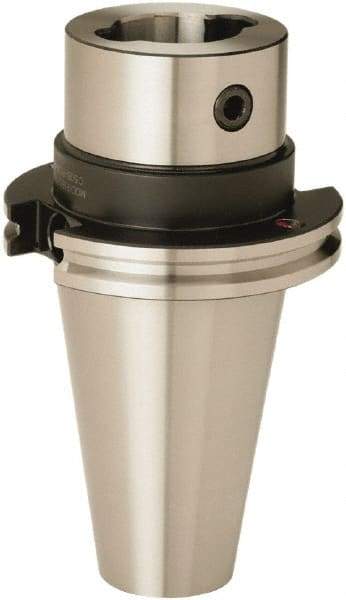

Parlec - PC5 Inside Modular Connection, Boring Head Taper Shank - Modular Connection Mount, 13.258 Inch Overall Length, 9-1/4 Inch Projection, 1.9685 Inch Nose Diameter
Item #: 43913813
Brand: Parlec
Model #: B50-PC5-10
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are mounted directly to the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Mount Type | Modular Connection |
| Inside Modular Connection Size | PC5 |
| Taper Size | BT50 |
| Projection (Decimal Inch) | 9.2520 |
| Projection (mm) | 235.00 |
| Nose Diameter (mm) | 50.00 |
| Nose Diameter (Decimal Inch) | 1.9685 |
| Overall Length (Decimal Inch) | 13.2580 |
| Through Coolant | Yes |
