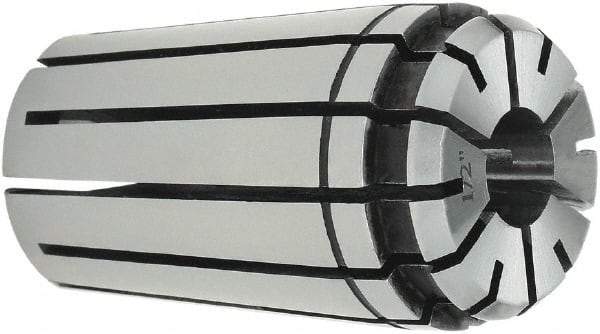

Parlec - 65 Piece, 1/2" to 1-1/2" Capacity, Single Angle Collet Set - 0.0005" TIR, Increments of 1/64", Series TG/PG 150
Item #: 43905678
Brand: Parlec
Model #: 150PG-S016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Single Angle |
| Collet Series | TG/PG 150 |
| Number of Pieces | 65 |
| Minimum Collet Capacity (mm) | 13.00 |
| Minimum Collet Capacity (Inch) | 1/2 |
| Minimum Collet Capacity (Decimal Inch) | 0.5000 |
| Maximum Collet Capacity (mm) | 37.50 |
| Maximum Collet Capacity (Inch) | 1-1/2 |
| Maximum Collet Capacity (Decimal Inch) | 1.4844 |
| Size Increments (Inch) | 1/64 |
| Size Increments (Decimal Inch) | 0.0156 |
| TIR (Decimal Inch) | 0.000500 |
| Size 1 (Decimal Inch) | 0.5000; 0.5156; 0.5312; 0.5469; 0.5625; 0.5781; 0.5938; 0.6094; 0.6250; 0.6406; 0.6562; 0.6719; 0.6875; 0.7031; 0.7188; 0.7344; 0.7500; 0.7656; 0.7812; 0.7969; 0.8125; 0.8281; 0.8438; 0.8594; 0.8750; 0.8906; 0.9062; 0.9219; 0.9375; 0.9531; 0.9688; 0.9844; |
| Size 2 (Decimal Inch) | 1.0469; 1.0625; 1.0781; 1.0938; 1.1094; 1.1250; 1.1406; 1.1562; 1.1719; 1.1875; 1.2031; 1.2188; 1.2344; 1.2500; 1.2656; 1.2812; 1.2969; 1.3125; 1.3281; 1.3438; 1.3594; 1.3750; 1.3906; 1.4062; 1.4219; 1.4375; 1.4531; 1.4688; 1.4844 |
| PSC Code | 5136 |
