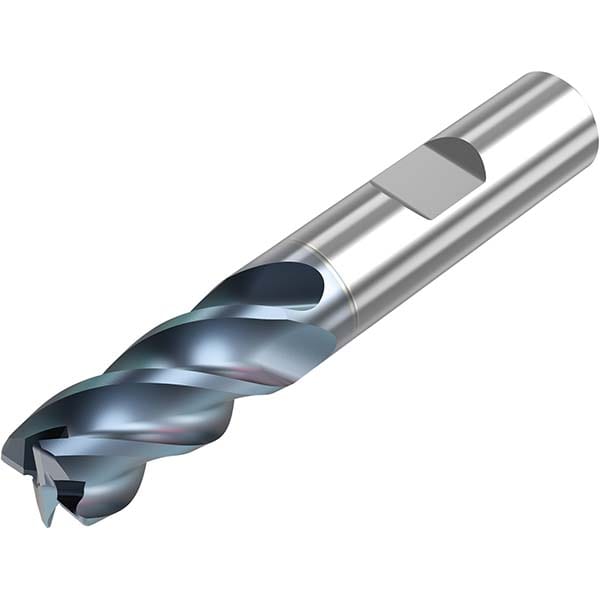

Corner Radius End Mill: 1/2" Dia, 1/2" LOC, 0.0300" Radius, 4 Flute, Solid Carbide
Item #: 16455198
Brand: Seco
Model #: 10008574
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1/2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | HTA |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Length Type | Stub |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| UNSPSC Code | 27112803 |
| Series | STR440.2 |
| TIR Maximum (Decimal Inch) | 0.0005 |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | High |
