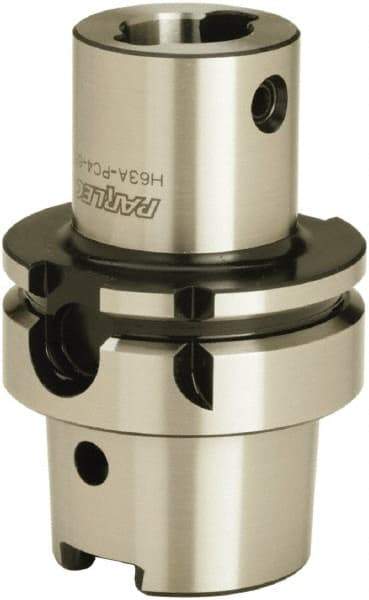

Parlec - PC4 Inside Modular Connection, Boring Head Taper Shank - Modular Connection Mount, 4-5/8 Inch Overall Length, 2-1/2 Inch Projection, 1.5354 Inch Nose Diameter
Item #: 43740224
Brand: Parlec
Model #: H100A-PC4-65
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are mounted directly to the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Mount Type | Modular Connection |
| Inside Modular Connection Size | PC4 |
| Taper Size | HSK100A |
| Projection (Decimal Inch) | 2.5000 |
| Projection (mm) | 63.50 |
| Nose Diameter (mm) | 39.00 |
| Nose Diameter (Decimal Inch) | 1.5354 |
| Overall Length (mm) | 117.50 |
| Overall Length (Decimal Inch) | 4.6260 |
| Through Coolant | Yes |
