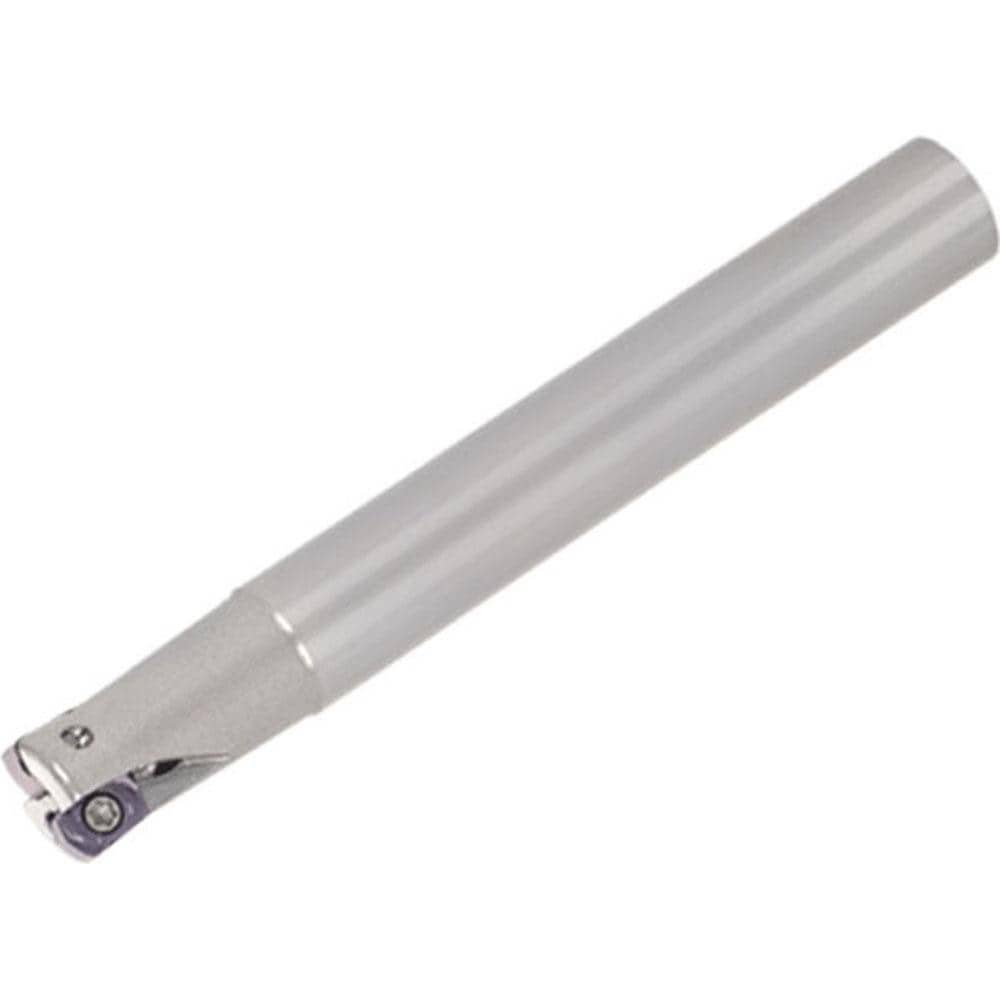

Indexable High-Feed End Mill: 5/8" Cut Dia, 5/8" Cylindrical Shank
Item #: 82950809
Brand: Tungaloy
Model #: 6837360
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.4603 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Cutting Diameter (Inch) | 5/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Toolholder Style | EXN |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (mm) | 0.62 |
| Maximum Ramping Angle | 1.23 |
| Compatible Insert Style | LNMU |
| Compatible Insert Size Code | 02 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Overall Length (mm) | 4.00 |
| Series | EXN-02 |
| Flute Type | Straight |
| Head Length (Decimal Inch) | 1.5000 |
| Functional Length (Decimal Inch) | 4.0000 |
| Tool Application | Facing; Milling |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
