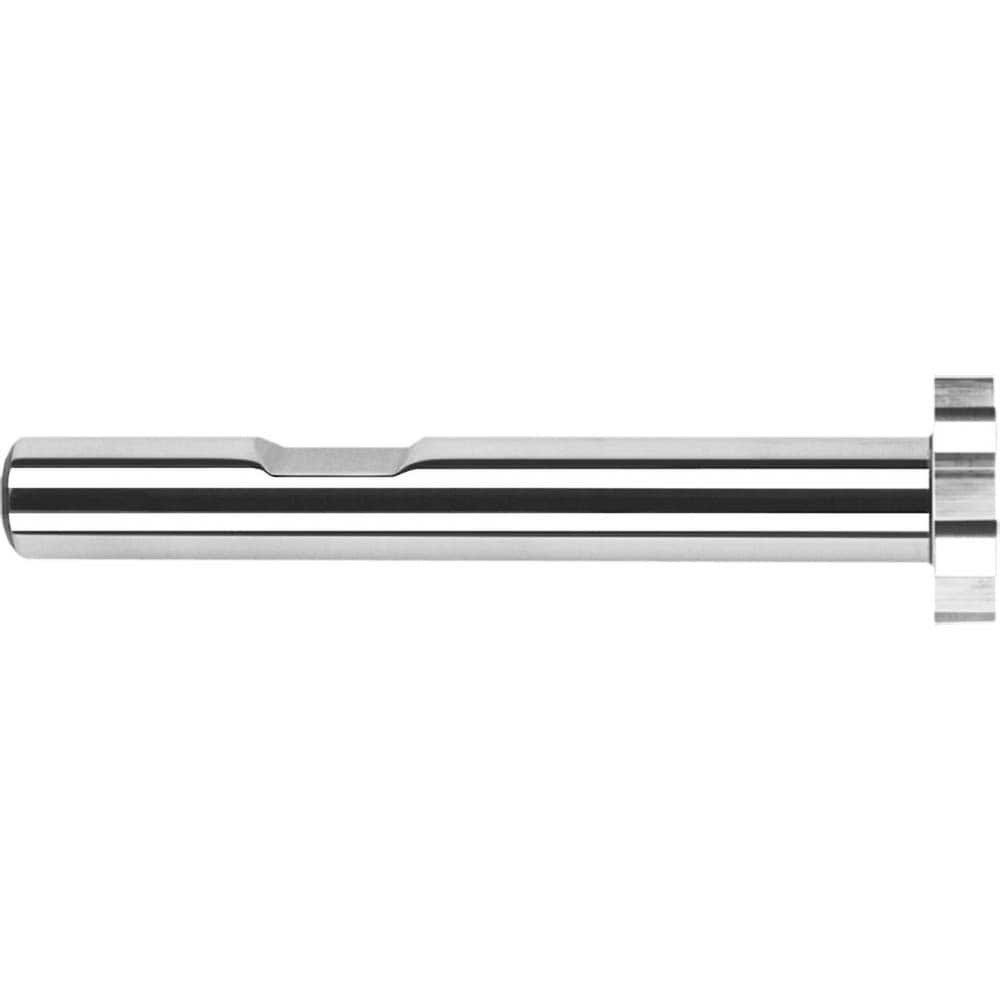

Woodruff Keyseat Cutter: 1-1/8" Cut Dia, 1/8" Cut Width, 3/4" Shank Dia, Straight Tooth
Item #: 86835345
Brand: Harvey Tool
Model #: 741750
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 1-1/8 |
| Cutter Diameter (Decimal Inch) | 1.1250 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 1/8 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Weldon Flat | No |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3750 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Non-Ferrous Metal; Hard Material; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 14 |
| UNSPSC Code | 23241631 |
| Country of Origin | UNITED STATES |
