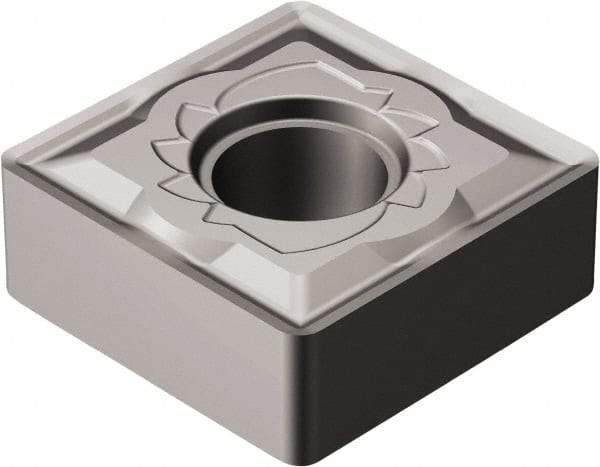

Sandvik Coromant - SNMG644 SM Grade H13A Carbide Turning Insert - Uncoated, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 43603752
Brand: Sandvik Coromant
Model #: 5906834
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 644 |
| Material | Carbide |
| Length (mm) | 12.70 |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.5875 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | SM |
| Insert Length (Decimal Inch) | 0.5000 |
| OverallLength (mm) | 19.05 |
| Overall Length (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| ISO Number | SNMG190616-SM H13A |
| Relief Angle | 0 |
| Included Angle | 90 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
