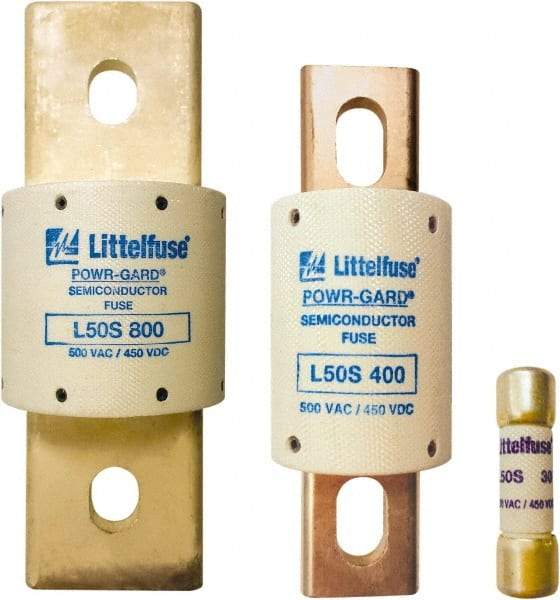

Value Collection - 450 VDC, 500 VAC, 40 Amp, Fast-Acting Semiconductor/High Speed Fuse - Bolt-on Mount, 3-3/16" OAL, 20 at DC, 200 at AC kA Rating, 13/16" Diam
Item #: 43597962
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Semiconductor/high speed fuses are designed to protect devices from overcurrents. They are quick reacting, reduce the need of other components to have high short-circuit current ratings.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Semiconductor/High Speed |
| Amperage | 40 |
| Voltage | 450 VDC; 500 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (Inch) | 3-3/16 |
| Overall Diameter (Inch) | 13/16 |
| Mounting Type | Bolt-on |
| Interrupting Rating (A) | 20000 @ DC; 200000 @ AC |
| Interrupting Rating (kA) | 20 @ DC; 200 @ AC |
| Standards Met | CSA File LR29862-99 Certified; UL Recognized File E71611 |
