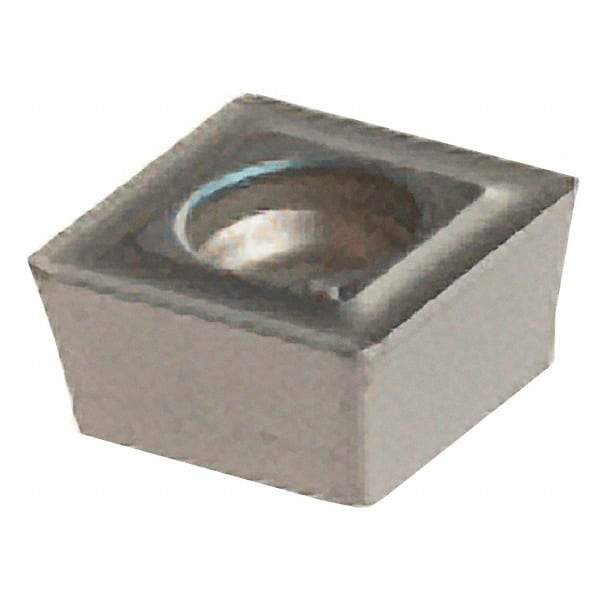

Iscar - SOMX070305 DT Grade IC8080 Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Square, 7.7mm Inscribed Circle
Item #: 43314996
Brand: Iscar
Model #: 5507924
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMX |
| Insert Size | 070305 |
| Material | Carbide |
| Manufacturer's Grade | IC8080 |
| Inscribed Circle (mm) | 7.70 |
| Inscribed Circle (Decimal Inch) | 0.3030 |
| Thickness (mm) | 3.60 |
| Thickness (Decimal Inch) | 0.1417 |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Shape | Square |
| Included Angle | 90 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | DT |
