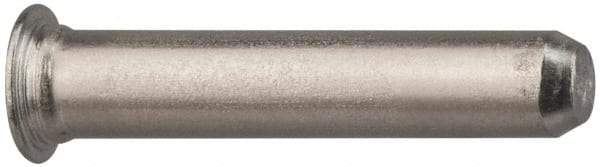

Electro Hardware - 0.27" Diam x 1" Long Self Clinching Pilot Pin - 300 Stainless Steel, Passivated Finish, Tapered End
Item #: 43256221
Brand: Electro Hardware
Model #: ETPS-187-16
Exact Tooling IR#: 04
Features and Benefits
Self-clinching pilot pins are installed into thin metal through a squeezing action that displaces the workpiece material.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Self Clinching Pilot Pin |
| System of Measurement | Inch |
| Diameter (Decimal Inch) | 0.2700 |
| Pin Length (Inch) | 1 |
| Pin Length (Decimal Inch) | 1.0000 |
| Material | Stainless Steel |
| Finish/Coating | Passivated |
| End Type | Tapered |
| Material Grade | 300 |
| PEM Part Number | ETPS-187-16 |
