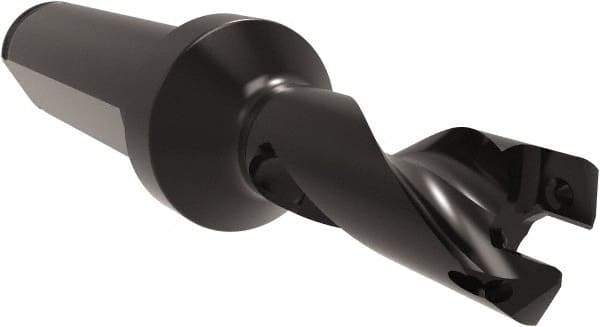

Allied Machine and Engineering - Series 11, 11 to 12mm Diam, 5/8" Diam Straight Shank with Flange, Helical Flute Spade Drill - 5/8" Max Depth, 1-43/64" Body Length, 3-35/64" OAL, Short Length, Through Coolant
Item #: 43091347
Brand: Allied Machine and Engineering
Model #: 60111H-063F
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 11 |
| Minimum Drill Diameter (mm) | 11.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4331 |
| Maximum Drill Diameter (mm) | 12.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.4723 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 3-35/64 |
| Overall Length (Decimal Inch) | 3.5469 |
| Maximum Drill Depth (Inch) | 5/8 |
| Maximum Drill Depth (Decimal Inch) | 0.6250 |
| Flute Type | Helical Flute |
| Body Length (Inch) | 1-43/64 |
| Body Length (Decimal Inch) | 1.6719 |
| Shank Length (Inch) | 1-7/8 |
| Shank Length (Decimal Inch) | 1.8750 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/16 |
