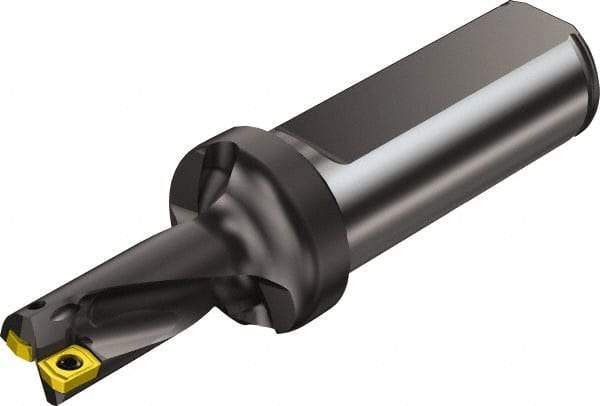

Sandvik Coromant - 30.8mm Max Drill Depth, 2xD, 14mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Straight Shank
Item #: 43039502
Brand: Sandvik Coromant
Model #: 5765155
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880..L-02 |
| Drill Diameter (mm) | 14.00 |
| Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Depth (mm) | 30.80 |
| Maximum Drill Depth (Decimal Inch) | 1.2126 |
| Shank Type | Straight |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.4 |
| Insert Size (Decimal Inch) | 0.0945 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 14.00 |
| Overall Length/Projection (mm) | 94.00 |
| Overall Length/Projection (Decimal Inch) | 3.7008 |
| Insert Compatibility (Outside or Peripheral) | 02P |
| Flute Length (mm) | 39.00 |
| Flute Length (Decimal Inch) | 1.5354 |
| Body Length (Decimal Inch) | 1.2205 |
| Body Length (mm) | 31.00 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Radius (Decimal Inch) | 0.2756 |
| Series | CoroDrill 880 |
