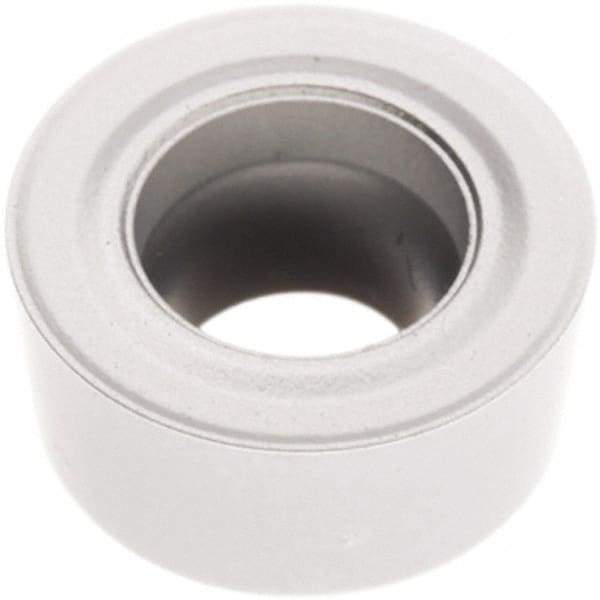

Seco - RCMT0803M0 M3 Grade TP1501 Carbide Turning Insert - Al2O3 Finish, Round, 8mm Inscr Circle, 1/8" Thick
Item #: 43019884
Brand: Seco
Model #: 15907
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 0803M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Manufacturer's Grade | TP1501 |
| Coating | Al2O3 |
| Chip Breaker | M3 |
| Insert Length (Decimal Inch) | 0.1340 |
| Hole Diameter (mm) | 3.50 |
| Hole Diameter (Decimal Inch) | 0.1378 |
| Rake | Neutral |
| Relief Angle | 7 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| FullRadius | Yes |
| Shape | Round |
