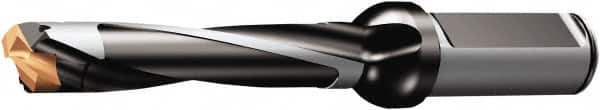

Sandvik Coromant - 16 to 16.99mm Diam, 5.17988xD, 87.54mm Max Depth, 20mm Shank Diam, 156mm OAL, Replaceable Tip Drill - 870-1690-16-PM Insert, 16 Seat Size, 870..L-5 Toolholder, Series CoroDrill 870
Item #: 42902288
Brand: Sandvik Coromant
Model #: 6035700
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 5.17988xD |
| Maximum Drill Depth (Decimal Inch) | 3.4465 |
| Maximum Drill Depth (mm) | 87.54 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | 870-1690-16-PM |
| Insert Seat Size | 16 |
| Toolholder Style | 870..L-5 |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Tip Length (mm) | 2.58 |
| Tip Length (Decimal Inch) | 0.1016 |
| Body Length (mm) | 90.00 |
| Body Length (Decimal Inch) | 3.5433 |
| Overall Length (mm) | 156.00 |
| Overall Length (Decimal Inch) | 6.1417 |
| Toolholder Material | Steel |
| Shank Length (mm) | 52.58 |
| Shank Length (Decimal Inch) | 2.0701 |
