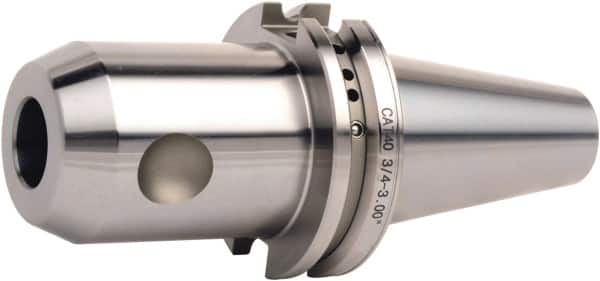

Accupro - CAT40 Dual Contact Taper Shank 1" Hole End Mill Holder/Adapter - 2-23/64" Nose Diam, 6" Projection, Through-Spindle & DIN Flange Coolant
Item #: 42832808
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Dual Contact Taper |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1 |
| Nose Diameter (Inch) | 2-23/64 |
| Projection (Inch) | 6 |
| Projection (Decimal Inch) | 6.0000 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 59.94 |
| Clamping Depth (Decimal Inch) | 2.3600 |
| Overall Length (Decimal Inch) | 8.6870 |
| Overall Length (mm) | 220.64 |
| Balanced to (RPM) | 30000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Retention Knob Thread Size | 5/8-11 |
