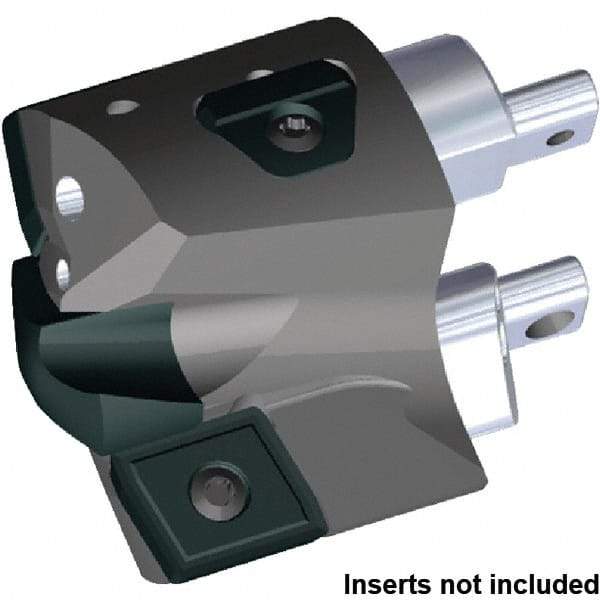

Kennametal - Series KSEM Plus, Head Connection FDS36, 37.5mm Max Diam Interchangeable Pilot Drill Head - KSEMP1500HPGM Pilot Drill, 15mm Pilot Drill Diam, 3 Nonpilot Inserts, 25mm Head Length
Item #: 42822015
Brand: Kennametal
Model #: 5116035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS36 |
| Pilot Type | Interchangeable Pilot |
| Maximum Drill Diameter (mm) | 37.50 |
| Maximum Drill Diameter (Decimal Inch) | 1.4760 |
| Pilot Drill Diameter (mm) | 15.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.5906 |
| Number of Non-Pilot Inserts | 3 |
| Pilot Drill Style | KSEMP1500HPGM |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9840 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp; Screw |
| Overall Length (mm) | 42.24 |
| Overall Length (Decimal Inch) | 1.6630 |
| Head Length to Pilot Tip (Decimal Inch) | 1.1110 |
| Head Length to Pilot Tip (mm) | 28.24 |
