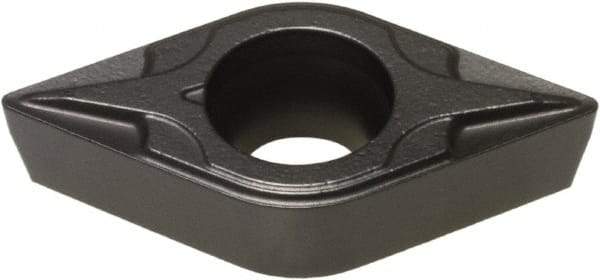

Hertel - DCMT21.50.5 M4 Grade HC1250T Carbide Turning Insert - 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.0079" Corner Radius
Item #: 42803718
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 21.50.5 |
| Material | Carbide |
| Length (mm) | 6.35 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | HC1250T |
| Material Grade | HC1250T |
| Chip Breaker | M4 |
| Insert Length (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | DCMT 070202-M4 |
| Rake | Positive |
| Rake Angle | 6 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | DCMT21.50.5 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Insert Holding Method | Screw |
| Shape | Diamond |
