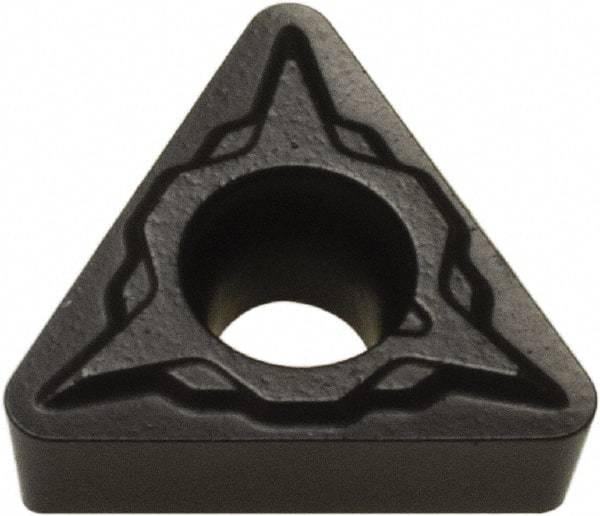

Hertel - TCMT1.21.20.5 M4 Grade HC1250T Carbide Turning Insert - Proprietary Finish, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 1/32" Corner Radius
Item #: 42800029
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 1.21.20.5 |
| Material | Carbide |
| Length (mm) | 3.97 |
| Length (Decimal Inch) | 0.1563 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0781 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | HC1250T |
| Coating | Proprietary |
| Material Grade | HC1250T |
| Chip Breaker | M4 |
| Insert Length (Decimal Inch) | 0.1563 |
| Hole Diameter (mm) | 2.15 |
| Hole Diameter (Decimal Inch) | 0.0846 |
| ISO Number | TCMT 06T102-M4 |
| Rake | Positive |
| Rake Angle | 6 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TCMT1.21.20.5 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Insert Holding Method | Screw |
| Shape | Triangle |
