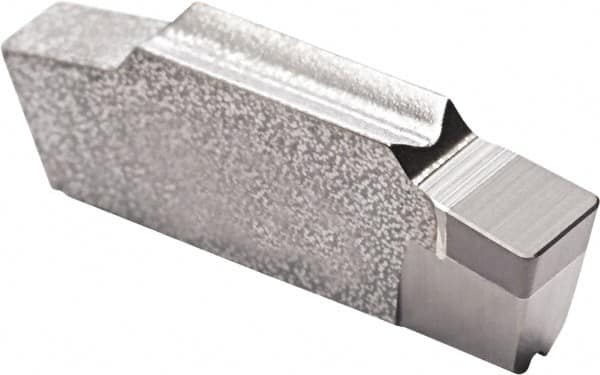

Seco - 160604LCGN LF Grade CBN010, 6mm Cutting Width PCBN Grooving Insert - 3.2mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, Uncoated
Item #: 42718544
Brand: Seco
Model #: 78918
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | LCGN |
| Insert Size | 160604 |
| Material | PCBN |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.1260 |
| Manufacturer's Grade | CBN010 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.50 |
| Cutting Height (Decimal Inch) | 0.1772 |
| Insert Seat Size | 16 |
| Chipbreaker | LF |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Overall Length (mm) | 15.90 |
| Overall Length (Decimal Inch) | 0.6260 |
| Series | Secomax |
