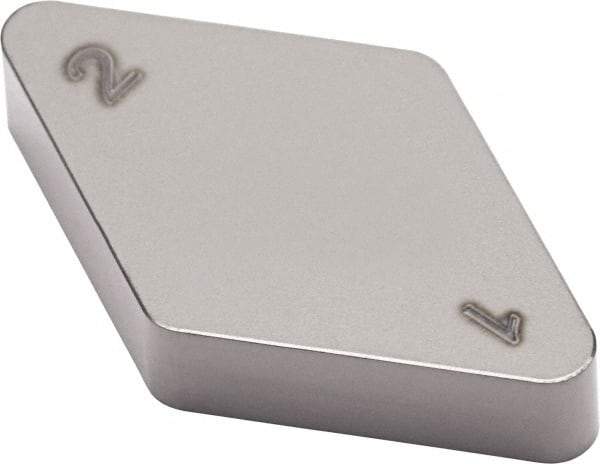

Seco - DNGN323 Grade CBN010 PCBN Turning Insert - Uncoated, 55° Diamond, 3/8" Inscr Circle, 1/8" Thick, 3/64" Corner Radius
Item #: 42716944
Brand: Seco
Model #: 78914
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DNGN |
| Insert Size | 323 |
| Material | PCBN |
| Length (mm) | 11.60 |
| Length (Decimal Inch) | 0.4567 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | CBN010 |
| Coating | Uncoated |
| Overall Length (Decimal Inch) | 0.4567 |
| Relief Angle | 0 |
| Included Angle | 55 |
| Series | Secomax |
| Insert Holding Method | Clamp |
| FullRadius | No |
| MultiUseTool | No |
| Shape | Diamond |
