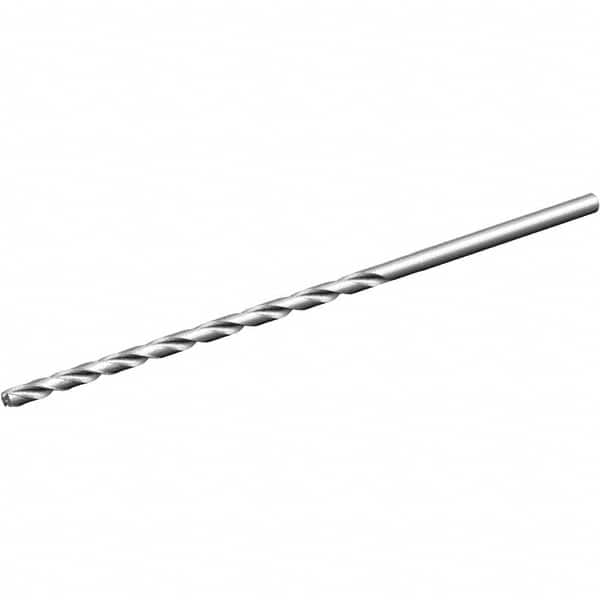

Extra Length Drill Bit: 0.5157″ Dia, 135 °, Solid Carbide - AlCrN;TiSiN Finish, 11.8898″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B272-HPG
Item #: 42704940
Brand: Kennametal
Model #: 5506363
Product Specifications
| Drill Bit Size (mm) | 13.10 |
| Overall Length (mm) | 365.00 |
| Flute Length (mm) | 302.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiSiN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B272-HPG |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in; +0.000 to -0.018 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.5157 |
| Drill Point Length (mm) | 2.40 |
| Drill Point Length (Decimal Inch) | 0.0945 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Diameter (mm) | 14.00 |
| Shank Length (Decimal Inch) | 2.0472 |
| Shank Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 11.8898 |
| Flute By Diameter Ratio | 20xD |
| Maximum Drilling Depth (Decimal Inch) | 10.7480 |
| Maximum Drilling Depth (mm) | 273.00 |
| Material Grade | Fine Grain |
| Specification Designation | DIN |
