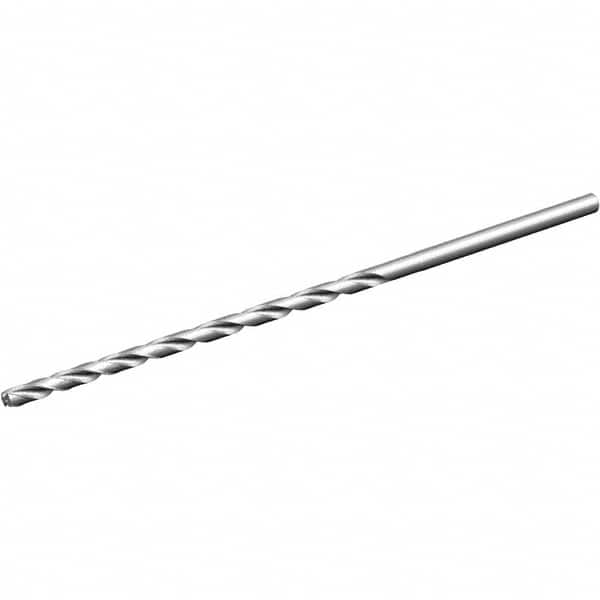

Extra Length Drill Bit: 0.2656″ Dia, 135 °, Solid Carbide - AlCrN;TiSiN Finish, 6.063″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B272-HPG
Item #: 42704718
Brand: Kennametal
Model #: 5506333
Product Specifications
| Overall Length (mm) | 197.00 |
| Flute Length (mm) | 154.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiSiN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B272-HPG |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | +0.000 to -0.015 mm; +0.0000 to -0.0006 in |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.2656 |
| Drill Point Length (mm) | 1.20 |
| Drill Point Length (Decimal Inch) | 0.0472 |
| Shank Diameter (Decimal Inch) | 0.2756 |
| Shank Diameter (mm) | 7.00 |
| Shank Length (Decimal Inch) | 1.4961 |
| Shank Length (mm) | 38.00 |
| Flute Length (Decimal Inch) | 6.0630 |
| Flute By Diameter Ratio | 20xD |
| Maximum Drilling Depth (Decimal Inch) | 5.4331 |
| Maximum Drilling Depth (mm) | 138.00 |
| Material Grade | Fine Grain |
| Specification Designation | DIN |
