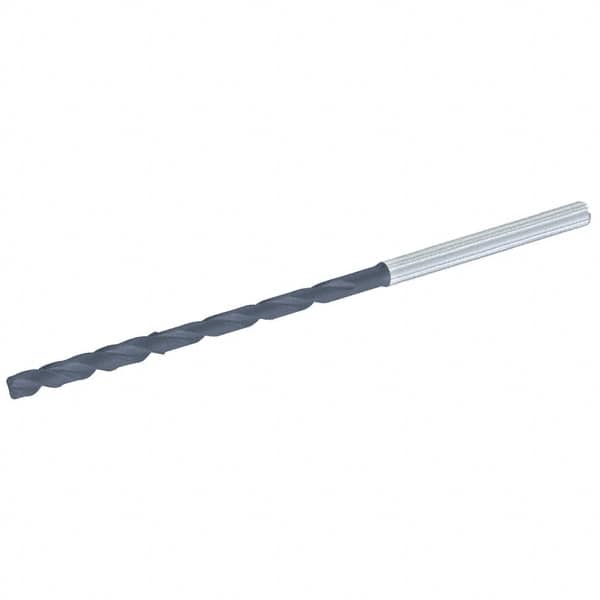

Extra Length Drill Bit: 0.5512″ Dia, 135 °, Solid Carbide - AlCrN;TiSiN Finish, 9.4488″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B271-HPG
Item #: 42704296
Brand: Kennametal
Model #: 5506146
Product Specifications
| Drill Bit Size (mm) | 14.00 |
| Overall Length (mm) | 295.00 |
| Flute Length (mm) | 240.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiSiN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B271-HPG |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in; +0.000 to -0.018 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.5512 |
| Drill Point Length (mm) | 2.60 |
| Drill Point Length (Decimal Inch) | 0.1024 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Diameter (mm) | 14.00 |
| Shank Length (Decimal Inch) | 2.0472 |
| Shank Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 9.4488 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (Decimal Inch) | 8.2677 |
| Maximum Drilling Depth (mm) | 210.00 |
| Material Grade | Fine Grain |
| Specification Designation | DIN |
