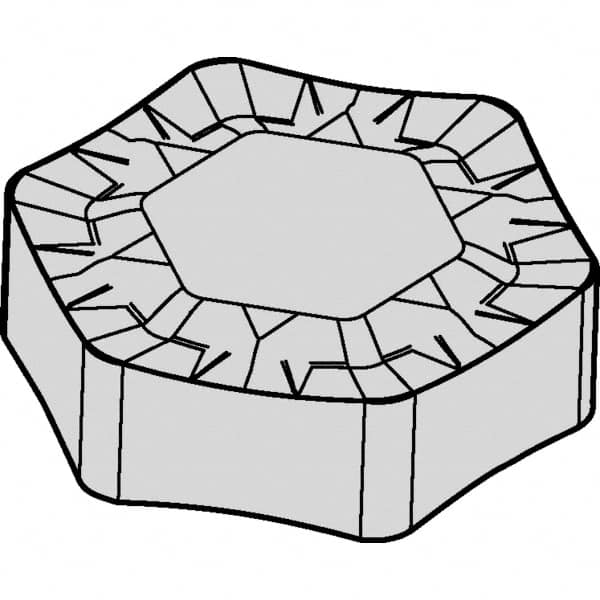

Kennametal - HNGX5358 Grade KCK15 Carbide Turning Insert - TiCN/Al2O3 Finish, Hexagon, 7/32" Thick, 0.118" Corner Radius
Item #: 42701300
Brand: Kennametal
Model #: 5420832
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGX |
| Insert Size | 5358 |
| Material | Carbide |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Decimal Inch) | 0.1180 |
| Manufacturer's Grade | KCK15 |
| Coating | TiCN/Al2O3 |
| Material Grade | C3/C4 |
| Insert Length (Decimal Inch) | 0.3680 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | K; P |
| Secondary Workpiece Material | None |
| Series | HexaCut |
| Insert Holding Method | Clamp |
| Shape | Hexagon |
