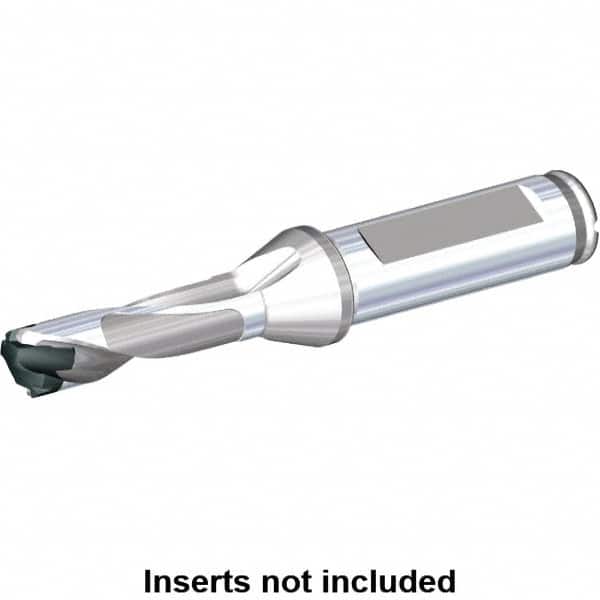

Kennametal - 8.61 to 8.99mm Diam, 3xD, 27mm Max Depth, 12.7mm Shank Diam, 1.534" Flute, 89.46mm OAL, Replaceable Tip Drill - G Seat Size, KTIP Toolholder, Series KenTIP
Item #: 42693424
Brand: Kennametal
Model #: 5307643
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 8.61 |
| Minimum Drill Diameter (Decimal Inch) | 0.3390 |
| Maximum Drill Diameter (mm) | 8.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3539 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.0630 |
| Maximum Drill Depth (mm) | 27.00 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Seat Size | G |
| Toolholder Style | KTIP |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (Decimal Inch) | 0.0590 |
| Flute Length (Decimal Inch) | 1.5340 |
| Overall Length (mm) | 89.46 |
| Overall Length (Decimal Inch) | 3.5220 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 1.7700 |
