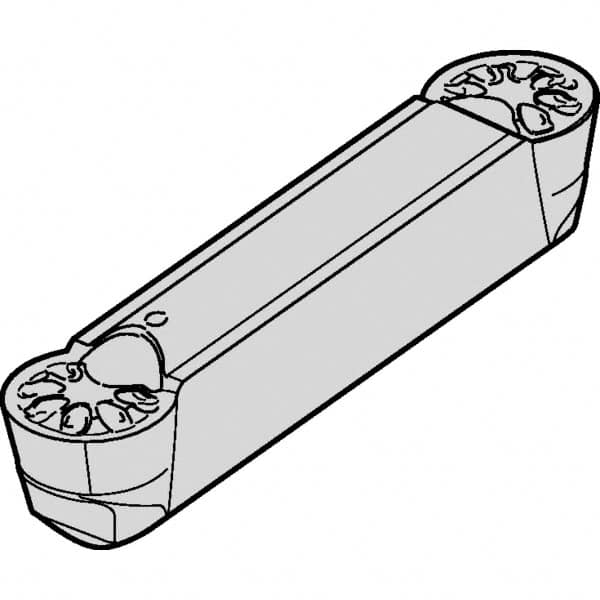

Kennametal - 0600A4R-P GUP Grade KCU10, 6mm Cutting Width Carbide Grooving Insert - Neutral, 3mm Corner Radius
Item #: 42692327
Brand: Kennametal
Model #: 5136420
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | A4R-P |
| Insert Size | 0600 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KCU10 |
| Insert Hand | Neutral |
| Insert Seat Size | 6 |
| Chipbreaker | GUP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Coating Process | PVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | A4 |
