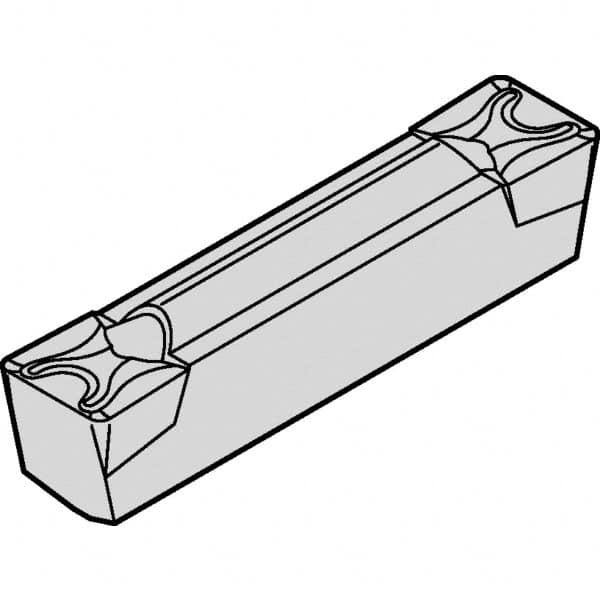

Kennametal - 0605A4G-U GMN Grade KCP10, 6.05mm Cutting Width Carbide Grooving Insert - 4.9mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiCN/Al2O3 Finish
Item #: 42688192
Brand: Kennametal
Model #: 4054889
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | A4G-U |
| Insert Size | 0605 |
| Material | Carbide |
| Cutting Width (mm) | 6.05 |
| Cutting Width (Decimal Inch) | 0.2382 |
| Maximum Depth of Cut (mm) | 4.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.1929 |
| Material Grade | C3/C7 |
| Manufacturer's Grade | KCP10 |
| Coating | TiCN/Al2O3 |
| Insert Hand | Neutral |
| Insert Seat Size | 6 |
| Chipbreaker | GMN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | CVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | A4 |
