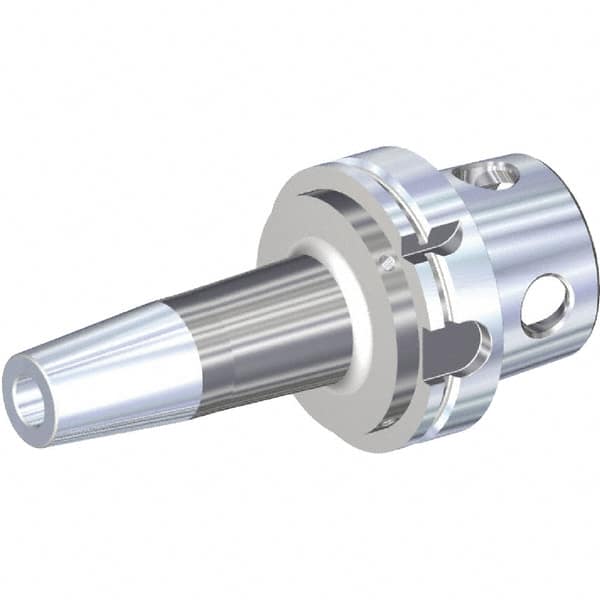

Kennametal - 1-1/2" Hole Diam, KM4X100 Modular Connection Shrink Fit Tool Holder & Adapter - 5.31" Projection, 2.36" Nose Diam, 2.01" Clamping Depth, 15,000 RPM, Through Coolant
Item #: 42682401
Brand: Kennametal
Model #: 4156164
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | KM4X100 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Hole Diameter (Inch) | 1-1/2 |
| Projection (Decimal Inch) | 5.3100 |
| Nose Diameter (Decimal Inch) | 2.3600 |
| Through Coolant | Through Coolant |
| Clamping Depth (Decimal Inch) | 2.0100 |
| Balanced to (RPM) | 15000 |
