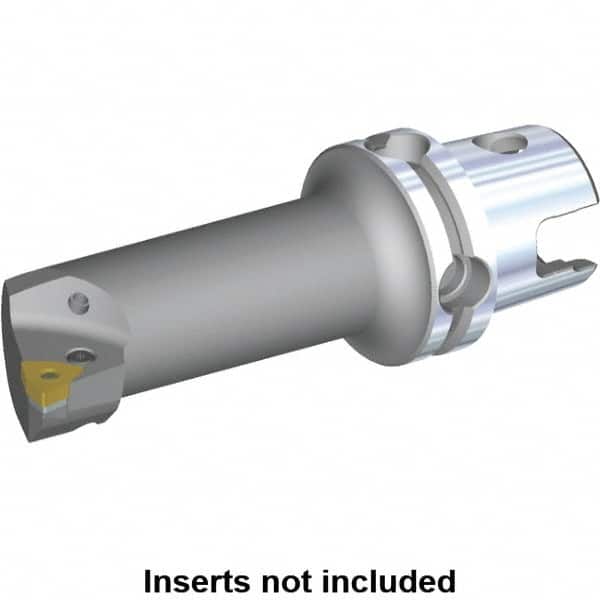

Kennametal - Left Hand Cut, 32mm Min Bore Diam, Size KM40 Modular Boring Cutting Unit Head - 3.0315" Max Bore Depth, Through Coolant, Compatible with WN..
Item #: 42681296
Brand: Kennametal
Model #: 3959348
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40 |
| Series Name | KM Micro |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Left Hand |
| Maximum Bore Depth (mm) | 77.00 |
| Maximum Bore Depth (Decimal Inch) | 3.0315 |
| Insert Style | WN.. |
| Head Length/Projection (mm) | 90.00 |
| Head Length/Projection (Decimal Inch) | 3.5433 |
| Insert Holding Method | Lever Lock |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Neck Diameter (mm) | 25.00 |
| Neck Diameter (Decimal Inch) | 0.9843 |
| Complete Insert Compatibility | WN..432; WN..080408 |
