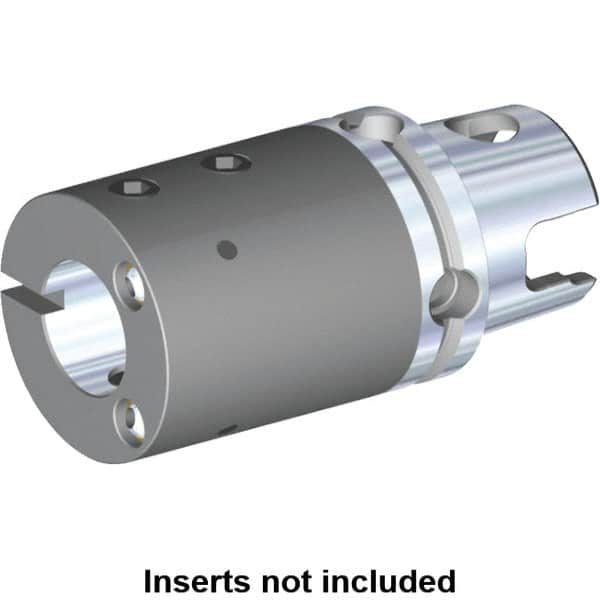

Kennametal - 16mm Bore Diam, 40mm Body Diam x 70mm Body Length, Boring Bar Holder & Adapter - 0.1969" Screw Thread Lock, 55mm Bore Depth, Internal & External Coolant
Item #: 42680199
Brand: Kennametal
Model #: 3950822
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 16.0000 |
| Bore Diameter (Decimal Inch) | 0.6299 |
| Connection Size | KM40TS |
| Body Diameter (mm) | 40.00 |
| Body Diameter (Decimal Inch) | 1.5748 |
| Body Length (mm) | 70.00 |
| Body Length (Decimal Inch) | 2.7559 |
| Lock Screw Size (mm) | 5.00 |
| Lock Screw Size (Decimal Inch) | 0.1969 |
| Lock Screw Compatibility | MS-1081 |
| Bore Depth (mm) | 55.00 |
| Bore Depth (Decimal Inch) | 2.1654 |
| Coolant Type | Internal & External |
