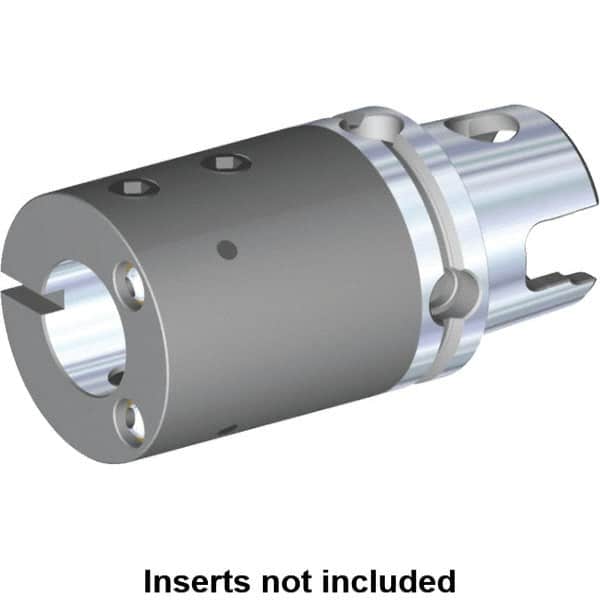

Kennametal - 63/64" Bore Diam, 50mm Body Diam x 75mm Body Length, Boring Bar Holder & Adapter - 0.1969" Screw Thread Lock, 56mm Bore Depth, Internal & External Coolant
Item #: 42680074
Brand: Kennametal
Model #: 3950824
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 25.0000 |
| Bore Diameter (Decimal Inch) | 0.9843 |
| Connection Size | KM40TS |
| Body Diameter (mm) | 50.00 |
| Body Diameter (Decimal Inch) | 1.9685 |
| Body Length (mm) | 75.00 |
| Body Length (Decimal Inch) | 2.9528 |
| Lock Screw Size (mm) | 5.00 |
| Lock Screw Size (Decimal Inch) | 0.1969 |
| Lock Screw Compatibility | MS-1081 |
| Bore Depth (mm) | 56.00 |
| Bore Depth (Decimal Inch) | 2.2047 |
| Coolant Type | Internal & External |
