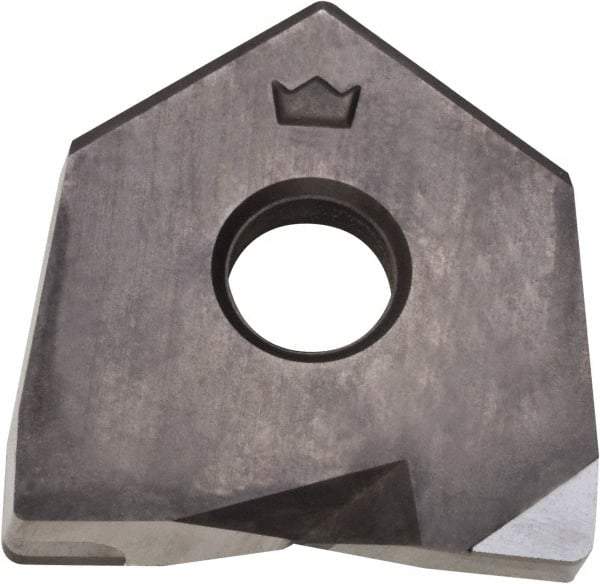

Millstar - BDS1250 Grade CM10 CBN Milling Insert - Uncoated, 0.2" Thick, 1-1/4" Inscribed Circle, 1/16" Corner Radius
Item #: 42589119
Brand: Millstar
Model #: BDS1250N04CBN
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | BDS |
| Insert Size | 1250 |
| Material | CBN |
| Material Grade | C1/C2/C3/C4/C5/C6 |
| Manufacturer's Grade | CM10 |
| Coating | Uncoated |
| Width (Decimal Inch) | 1.2500 |
| Length (Decimal Inch) | 0.9190 |
| Inscribed Circle (Inch) | 1-1/4 |
| Inscribed Circle (Decimal Inch) | 1.2500 |
| Thickness (Decimal Inch) | 0.2000 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Rake | Neutral |
| Coating Process | CBN |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Cutting Edge Style | Honed |
