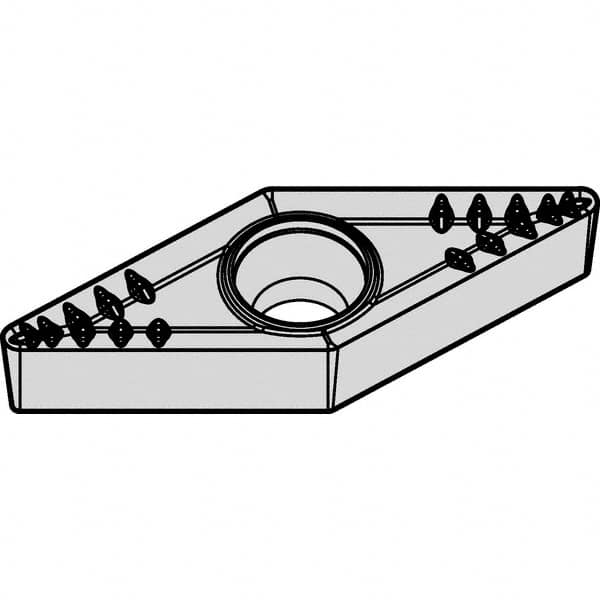

Kennametal - VBMT331 MP Grade KCP25B Carbide Turning Insert - TiOCN Finish, 35° Diamond, 4.4mm Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 42491738
Brand: Kennametal
Model #: 5982089
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 16.61 |
| Inscribed Circle (mm) | 4.40 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KCP25B |
| Coating | TiOCN |
| Chip Breaker | MP |
| Insert Length (Decimal Inch) | 0.6538 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | VBMT160404MP |
| Relief Angle | 5 |
| Coating Process | CVD |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| Shape | Diamond |
