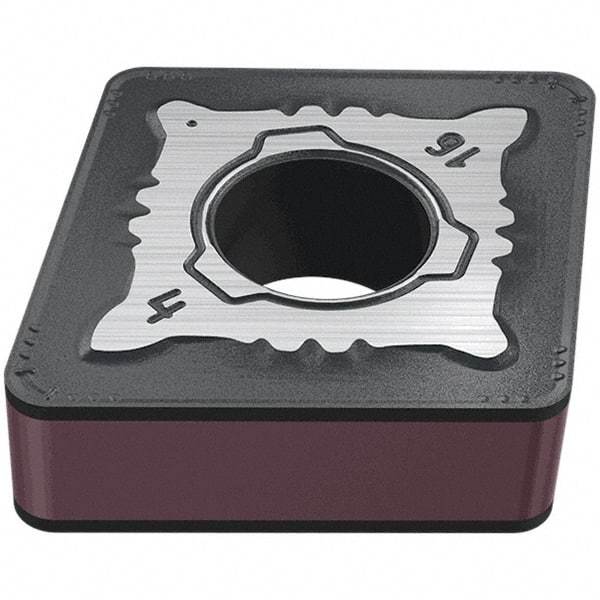

Iscar - CNMG543 R3M Grade IC6025 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 15.88mm Inscr Circle, 6.35mm Thick, 1.2mm Corner Radius
Item #: 42474106
Brand: Iscar
Model #: 5569065
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 543 |
| Material | Carbide |
| Length (mm) | 16.12 |
| Length (Decimal Inch) | 0.6350 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | IC6025 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | R3M |
| ISO Number | CNMG 543-R3M |
| Rake | Positive |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5569065 |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Shape | Diamond |
