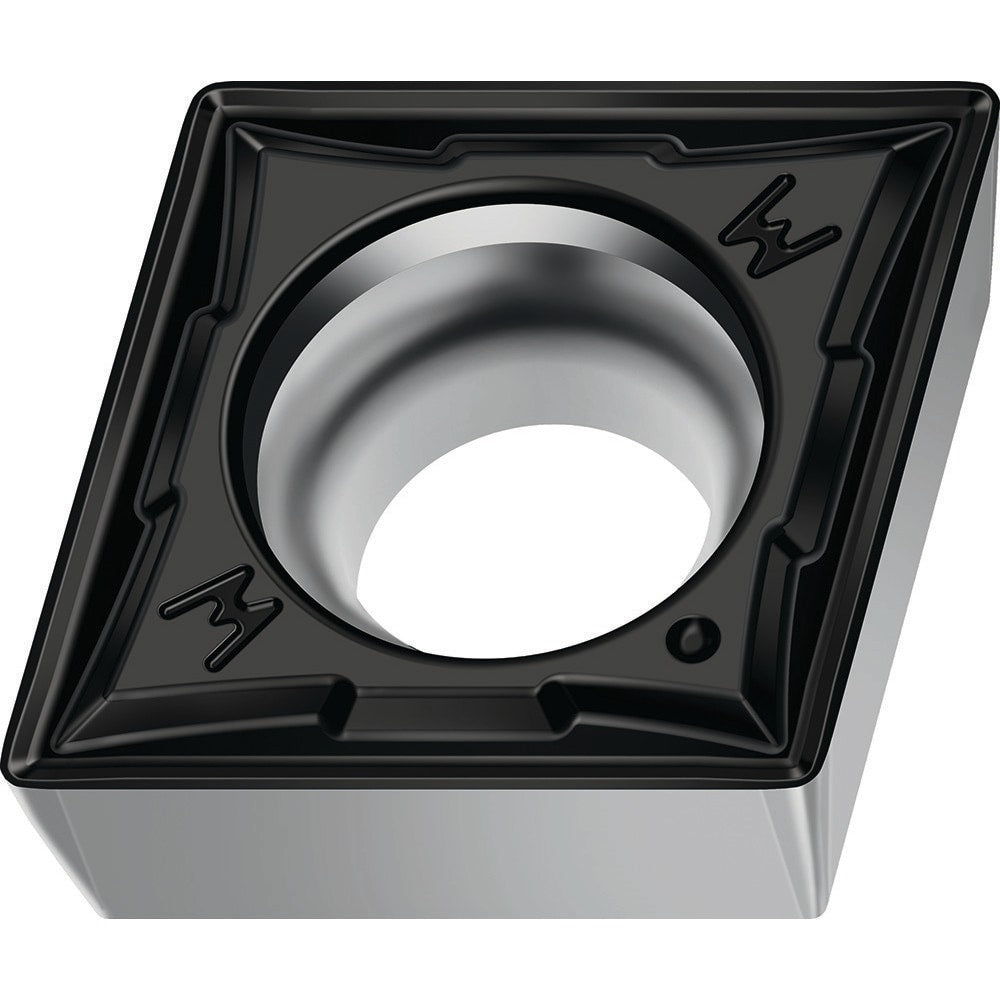

Turning Insert: CCMT32.52MW4 WKK20S, Carbide
Item #: 04798237
Brand: Walter
Model #: 8296293
Product Specifications
| ANSI Insert Code | CCMT3(2.5)2 |
| ISO Insert Code | CCMT09T308 |
| Relief Angle | 7.000 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.80 |
| Included Angle | 80.00 |
| Manufacturer Grade | WKK20S |
| Coating/Finish | TiCN+Al2O3+(TiCN) |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Series | CCMT |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Wiper - Medium Machining |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Maximum Depth of Cut (mm) | 4.00 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Length (mm) | 9.67 |
| Manufacturers Catalog Number | CCMT09T308-MW4 WKK20S |
| Chip Breaker | MW4 |
| Width (mm - 2 Decimals) | 9.53 |
| ANSI Size Code | 3(2.5)2 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 09 |
