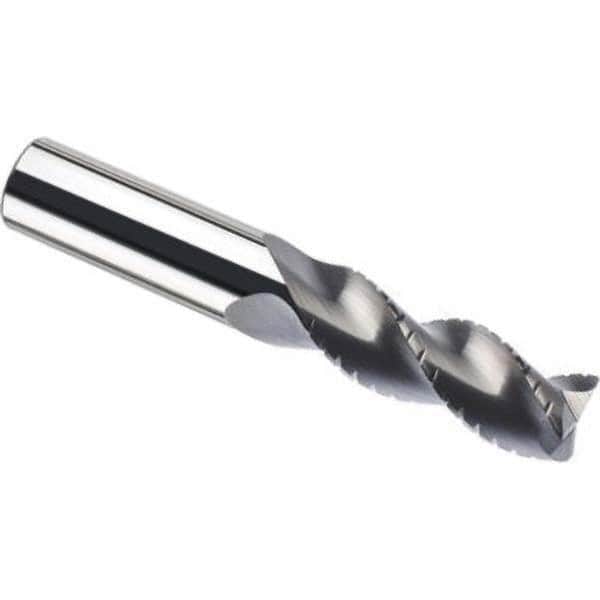

Corner Radius End Mill: 1″ Dia, 1-3/4″ LOC, 0.06″ Radius, 3 Flutes, Solid Carbide 4-1/2″ OAL, 1″ Shank Dia, 38 ° Helix, TiB2 Coated, Corner Radius End, Centercutting, Series APR
Item #: 42385443
Brand: SGS
Model #: 34009
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (Inch) | 1-3/4 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4-1/2 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Corner Radius Tolerance | +0.00000 to -0.00120 in |
| Mill Diameter Tolerance | +0.000040 to -0.002000 in |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | +0.0600 to -0.0600 in |
| Primary Workpiece Material | Non-Ferrous Metal |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | APR |
| Product Service Code | 3455 |
| Single Or Double End | Single |
| Coating/Finish | TiB2 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.7500 |
