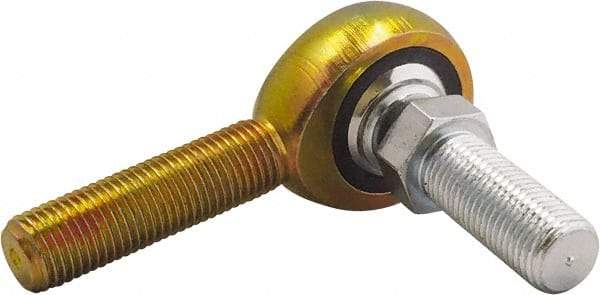

Made in USA - 3/8" ID, 1" Max OD, 4,012 Lb Max Static Cap, Male Spherical Rod End with Stud - 3/8-24 RH, 1-1/4" Shank Length, Carbon Steel with Plastic Raceway
Item #: 42307470
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3750 |
| Inside Diameter (Inch) | 3/8 |
| Style | Male Rod End w/ Stud |
| Maximum Outside Diameter (Decimal Inch) | 1.0000 |
| Maximum Outside Diameter (Inch) | 1 |
| Maximum Static Load Capacity (Pounds) | 4012.0 |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Thread Size | 3/8-24 |
| Material | Carbon Steel |
| Raceway Material | Plastic |
| Shank Length (Decimal Inch) | 1.2500 |
| Thread Direction | Right Hand |
