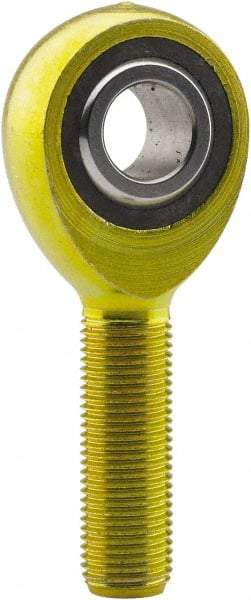

Made in USA - 1/2" ID, 1-5/16" Max OD, 6,453 Lb Max Static Cap, Plain Male Spherical Rod End - 1/2-20 RH, 1-1/2" Shank Length, Carbon Steel with Plastic Raceway
Item #: 42307223
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.5000 |
| Inside Diameter (Inch) | 1/2 |
| Style | Plain Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 1.3125 |
| Maximum Outside Diameter (Inch) | 1-5/16 |
| Maximum Static Load Capacity (Pounds) | 6453.0 |
| Width (Inch) | 5/8 |
| Width (Decimal Inch) | 0.6250 |
| Thread Size | 1/2-20 |
| Material | Carbon Steel |
| Raceway Material | Plastic |
| Shank Length (Decimal Inch) | 1.5000 |
| Thread Direction | Right Hand |
