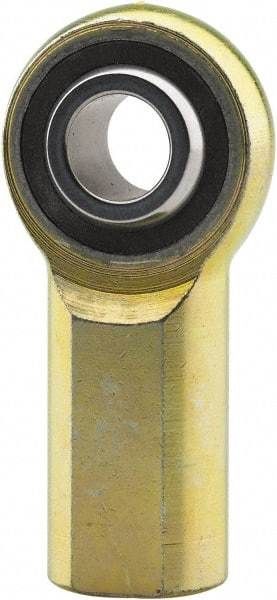

Made in USA - 3/4" ID, 1-3/4" Max OD, 10,937 Lb Max Static Cap, Plain Female Spherical Rod End - 3/4-16 RH, 1-1/8" Shank Diam, 1-9/16" Shank Length, Carbon Steel with Plastic Raceway
Item #: 42307173
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.7500 |
| Inside Diameter (Inch) | 3/4 |
| Style | Plain Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 1.7500 |
| Maximum Outside Diameter (Inch) | 1-3/4 |
| Maximum Static Load Capacity (Pounds) | 10937.0 |
| Width (Inch) | 7/8 |
| Width (Decimal Inch) | 0.8750 |
| Thread Size | 3/4-16 |
| Material | Carbon Steel |
| Shank Diameter (Decimal Inch) | 1.1250 |
| Raceway Material | Plastic |
| Shank Length (Decimal Inch) | 1.5620 |
| Thread Direction | Right Hand |
