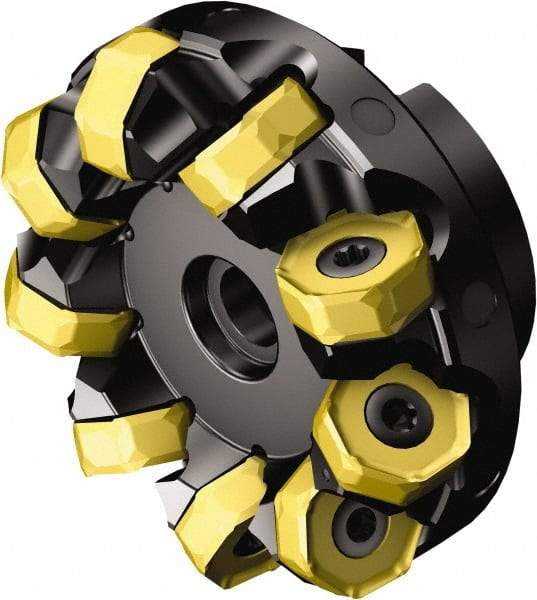

Sandvik Coromant - 100mm Cut Diam, 32mm Arbor Hole, 5.2mm Max Depth of Cut, 42° Indexable Chamfer & Angle Face Mill - 11 Inserts, 745R-2109 Insert, Right Hand Cut, 11 Flutes, Through Coolant, Series Coromill 745
Item #: 42251462
Brand: Sandvik Coromant
Model #: 6702242
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 42 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | 745R-2109 |
| Series | Coromill 745 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.20 |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Screw |
| Number of Flutes | 11 |
| Hub Diameter (Decimal Inch) | 3.1102 |
| Hub Diameter (mm) | 79.00 |
| Maximum Body Diameter (Decimal Inch) | 4.4843 |
| Maximum RPM | 4765 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
