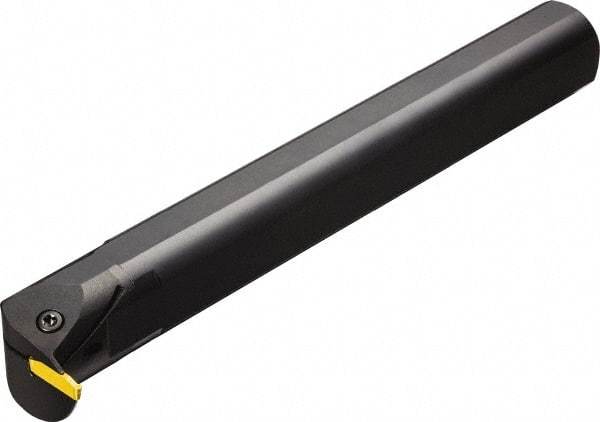

Sandvik Coromant - AG123, Internal, Left Hand, 13mm Max Depth of Cut, 4mm Max Groove Width, Indexable Grooving Tool Holder - N123..GM Insert Compatibility, 1.85" Shank Height, 13.7795" OAL, Through Coolant
Item #: 42231746
Brand: Sandvik Coromant
Model #: 5734716
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (Decimal Inch) | 13.7795 |
| Toolholder Style | AG123 |
| Insert Compatibility | N123..GM |
| Shank Height (Decimal Inch) | 1.8500 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Coolant Hole Diameter (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Insert Seat Size | H |
| Minimum Hole Diameter (Decimal Inch) | 2.3622 |
| Maximum Hole Depth (Decimal Inch) | 2.5590 |
| Maximum Bore Depth (Decimal Inch) | 2.5590 |
| igrvh Maximum Bore Depth (mm) | 65.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9250 |
| Center to Cutting Edge (Decimal Inch) | 1.5059 |
| Head Length (Decimal Inch) | 2.5591 |
| Shank Length (Decimal Inch) | 11.2205 |
| Manufacturers Catalog Number | LAG123H051-32B |
| Height to Shank Top (Decimal Inch) | 1.8500 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | L123H2-0400-05; LG123H1-02; LG123H1-0200-0002-G; LG123H1-0200-0010-R; LG123H1-03; LG123H1-0300-0002-G; LG123H1-0300-0015-R; LG123H1-0400-0004-G; LG123H1-0400-0020-R; N123H1-04; N123H1-0400-00; N123H1-040004S; N123H1-0400S; N123H1-0470-00; N123H1-05; N123H |
| Minimum Bore Diameter (Decimal Inch) | 2.3620 |
| Minimum BoreDiameter (mm) | 60.00 |
| Shank Diameter (Decimal Inch) | 2.0000 |
