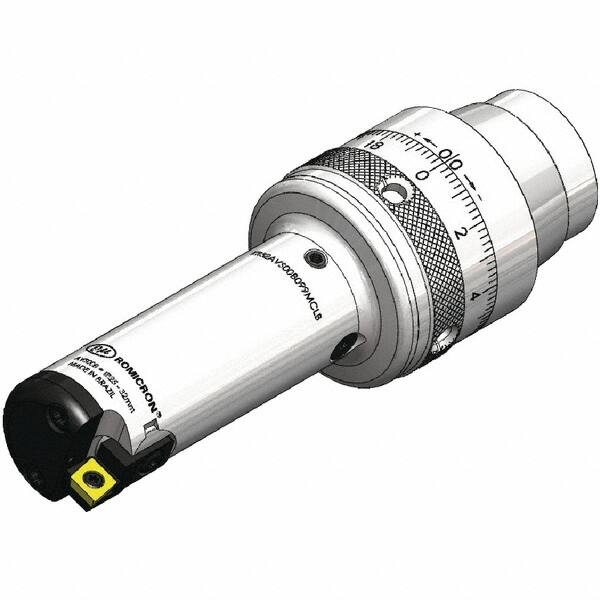

Kennametal - 47mm Body Diam, Manual Single Cutter Boring Head - 52mm to 66mm Bore Diam, 48mm Bar Hole Diam
Item #: 42073536
Brand: Kennametal
Model #: 5124818
Exact Tooling IR#: 04
Features and Benefits
Boring heads with a single cutter (single edge) are used for general purpose finishing and roughing operations. They may also be used where machine power is limited.
Integral shank boring heads have the shank built into the head.
| Product Specifications | |
|---|---|
| Type | Single Cutter Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 47.00 |
| Body Diameter (Decimal Inch) | 1.8500 |
| Mount Type | Integral Shank |
| Shank Type | Modular Connection |
| Modular Connection Size | KR32 |
| Series | Romicron |
| Boring Bar Hole Diameter (mm) | 48.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.0470 |
| Minimum Bore Diameter (mm) | 52.00 |
| Maximum Bore Diameter (mm) | 66.00 |
| Maximum Bore Diameter (Decimal Inch) | 2.5980 |
| Projection (mm) | 115.00 |
| Overall Length (mm) | 135.00 |
