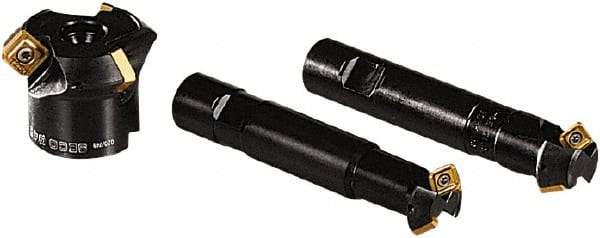

Seco - 60° Lead Angle, 27mm Max Cut Diam, 20mm Min Cut Diam, 6.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, SPMX 0903.. Insert Style, 110mm Overall Length, Straight Shank
Item #: 41894445
Brand: Seco
Model #: 02620
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.7874 |
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 27.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0630 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Lead Angle | 60 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | SPMX 0903.. |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Maximum Depth of Cut (mm) | 6.50 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | R215.39 |
| Weldon Flat | Yes |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Maximum RPM | 24300 |
