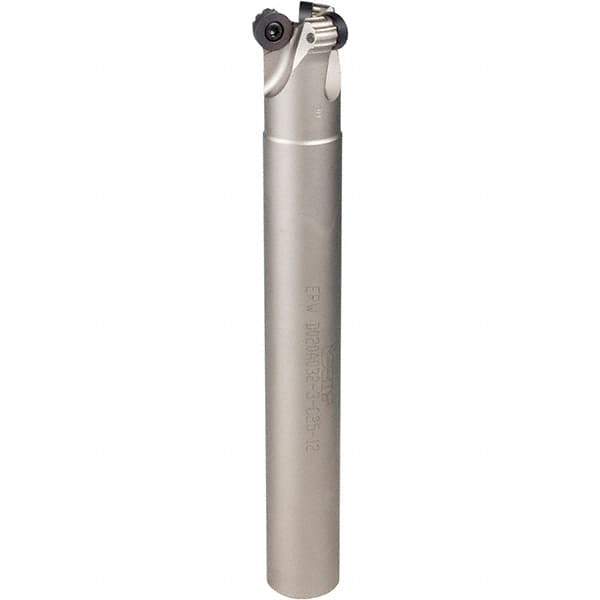

Iscar - 0.78" Cutting Diam, 1" Shank Diam, 1-1/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RCMT/RCCT-MO, RCMT/RCMW/RCCW-FW, RCMW/RCCW-MO Insert, ERW Toolholder, Through Coolant
Item #: 41854449
Brand: Iscar
Model #: 3105172
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 3 |
| Insert Style | RCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO |
| Toolholder Style | ERW |
| Series | MillShred |
| Overall Length (Decimal Inch) | 8.0000 |
| Insert Diameter (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.6000 |
| Shank Length (Decimal Inch) | 6.4000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
